Axis1.4 webService开发教程——004

2016-08-1815:30:10 1 2,194

输入参数是bean的deploy.wsdd配置

当服务类的输入参数是一个bean对象时,怎样配置deploy.wsdd?

1.编写服务一个bean实体类

public class Person {

private String name;
private int age;
public String getName() {
return name;
}
public void setName(String name) {
this.name = name;
}
public int getAge() {
return age;
}
public void setAge(int age) {
this.age = age;
}
public Person() {
super();
}
public Person(String name, int age) {
super();
this.name = name;
this.age = age;
}

2.编写服务类方法,注意参数是一个person类型的数据对象

public String outputInfo(Person p){
return "姓名:"+p.getName()+",年龄:"+p.getAge();
}

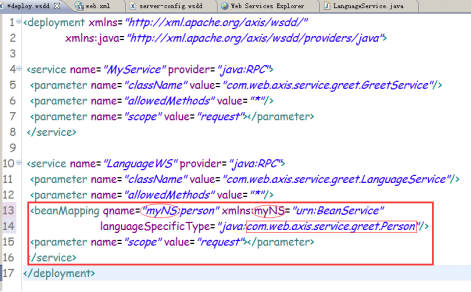

3.配置deploy.wsdd文件


注意:参数如果是一个bean,就要配置bean的序列化!格式如下:


只有配置了这个才能在传递数据时正确参入参数!

4.重新生成server-config.wsdd文件!

启动tomcat服务器!

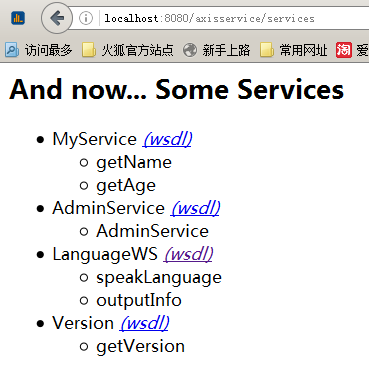

浏览器输入:http://localhost:8080/axisservice/services

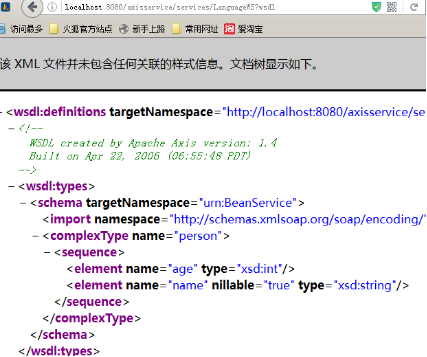

5.点击“languageWS(wsdl)”

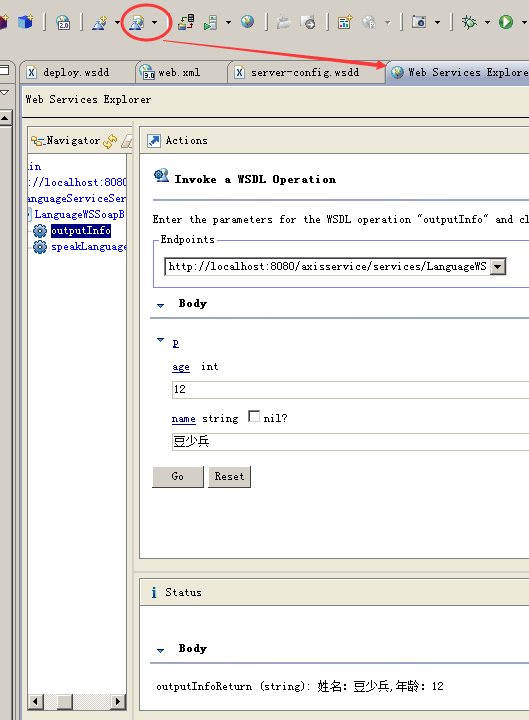

6.Myeclipse 自带wsdl测试工具:

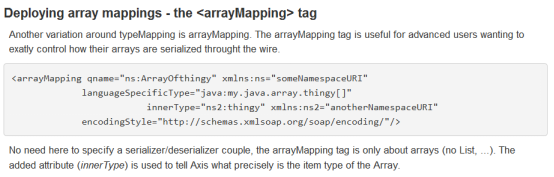

其他的集合数据在deploy.wsdd中的映射配置!图片17
